CDD‑20

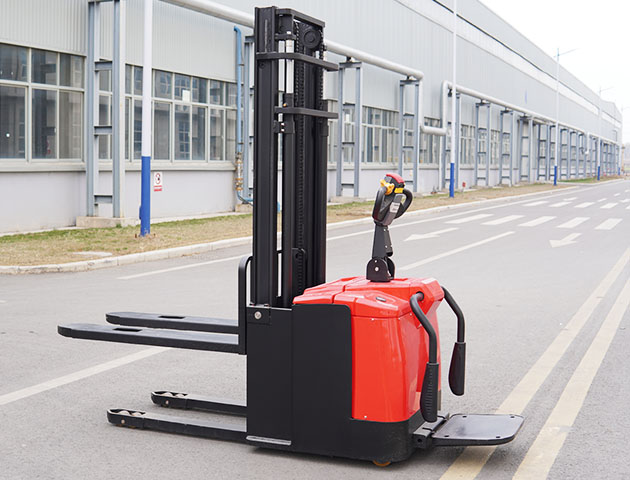

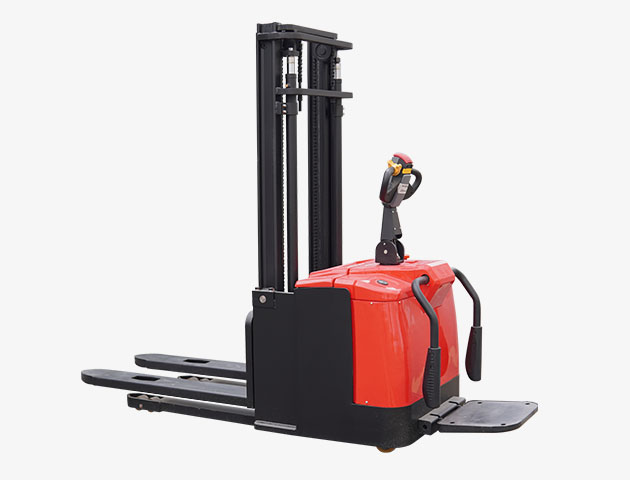

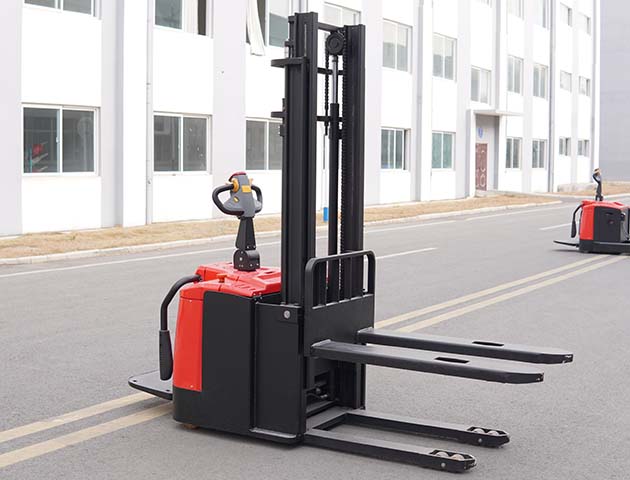

2Ton Electric Pallet Stacker

☑ Fork size: 1220×185×55mm

☑ Overall Width: 880mm

☑ Lifting height: 3000mm

Powering Progress, Sustaining the Planet

2000kg

Load capacity

1600mm

Lift Height

Stand‑up

Type of operation

Features

The AC brushless drive motor is powerful and maintenance‑free;

CURTIS AC control system, precise control and higher efficiency;

High‑performance hydraulic lift motor, with high efficiency, low noise and vibration;

The mast adopts H‑shaped channel steel, which has strong stability and good rigidity;

The vehicle has regenerative braking and slope protection against sliding down to ensure safe operation;

The rear cover of the frame can be completely dismantled, and the components are clear and easy to maintain.

Specs & Compare

Here are the key specifications for this product model. Want more details? Download the brochure or contact us.

Load capacity	2000kg
Wheelbase	1500mm
Overall Length	2210/2645 mm
Overall Width	880mm
Lift Height	1600mm
Lowered mast height	2070mm
Fork Dimension	1220×185×55mm
Ground Clearance at center of wheelbase (Min)	30mm
Turning Radius	1755/2200mm
Type of operation	Stand‑up
