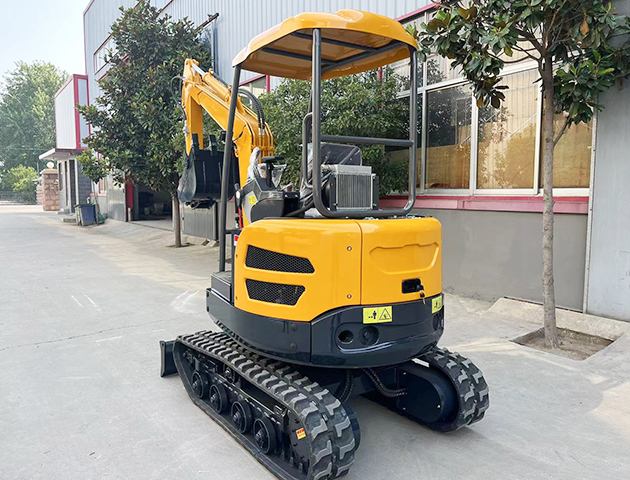

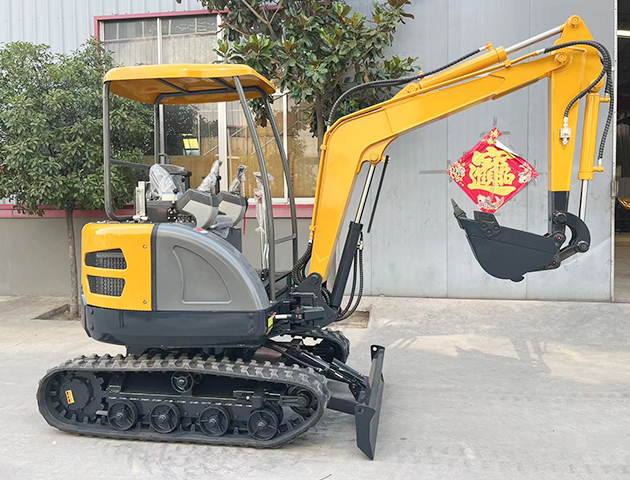

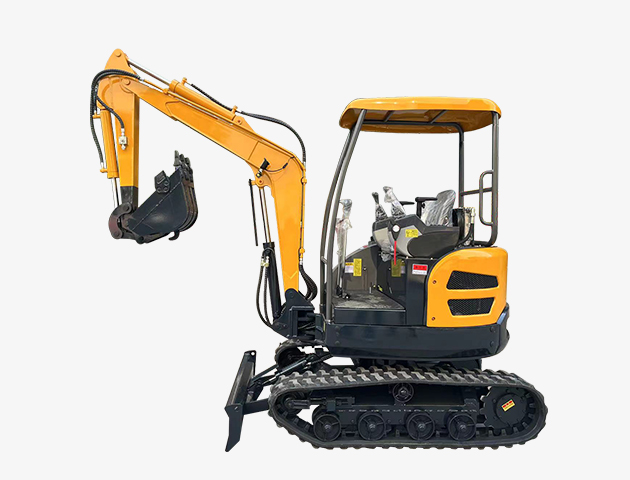

The whole machine has a compact structure and will not be limited by the size of the working space. It has a small turning radius and can easily enter a small space for operation. It is flexible and easy to operate, sensitive to operation, and has higher
The roof of the mini excavator can not only provide shade and protection, but can also be disassembled and installed as needed to adapt to different working environments and operating requirements. This design allows the equipment to perform at its best i
It has the features of low noise, small vibration, large traction, strong adaptability, etc. It is particularly suitable for use in agriculture, orchard greenhouses, construction sites, road excavation and indoor operations
The built‑in motor usually adopts a high‑torque permanent magnet synchronous motor with an output efficiency of up to 95%, 30% lower energy consumption than the fuel version, and 3% higher efficiency than the fuel version. This design enables the
Imported and joint venture hydraulic components, based on the pilot hydraulic system, are light and flexible in operation, soft in action, and can ensure precise operation.
The ultra‑stable chassis, the enlarged travel reducer has strong driving force, and the attached boom deflection can be used for side digging at an angle, which is suitable for safe operation in small spaces;
The standard auxiliary pipeline can be equipped with various auxiliary devices.
Adopt Laidong 3TE30 National Three EFI engine.
Unique chassis performance, self‑developed all‑terrain walking chassis for garden and off‑road projects, with high passability, super large torque for easy cleaning of debris, and steep slopes without taking off the belt. (Pure engineering chassis can be
Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
| Vehicle weight | 2200kg |
| Machine size | 3750*1400*2400mm |
| Engine | LD385 |
| Engine power | 22.1KW |
| Maximum Digging Radius | 4200mm |
| Maximum Digging Depth | 2200mm |
| Maximum Digging Height | 3200mm |
| Maximum dump height | 2150mm |
| Minimum turning radius | 2300mm |
| Chassis width | 1400mm |
