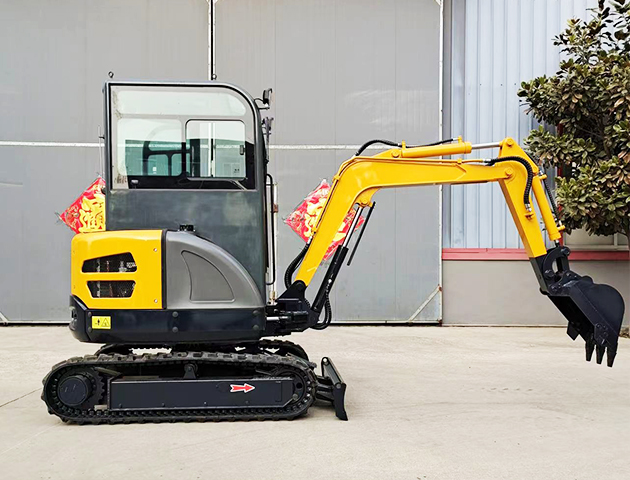

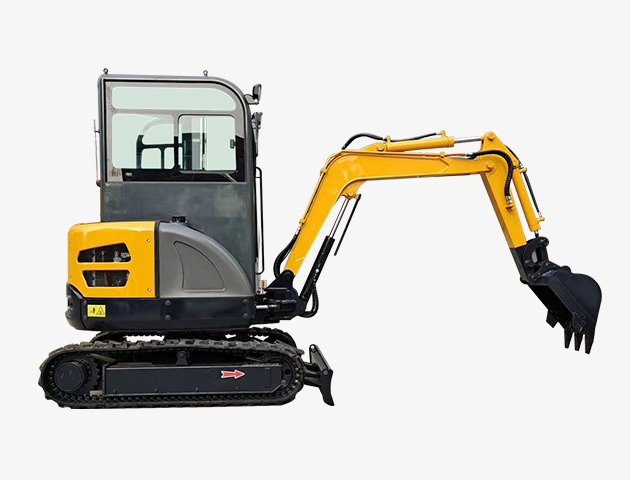

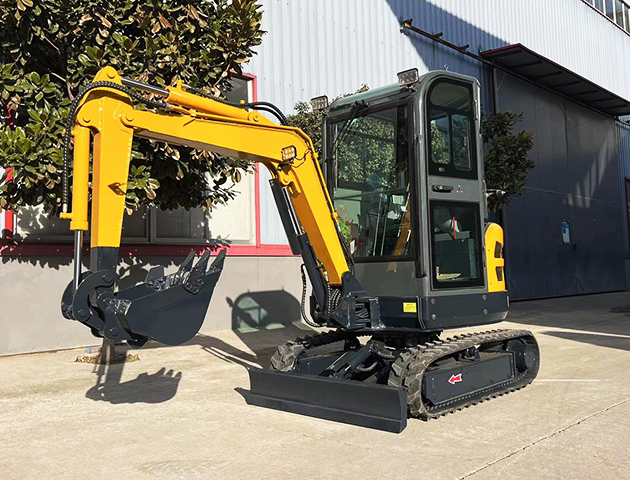

The whole machine has a compact structure and will not be limited by the size of the working space. It has a small turning radius and can easily enter a small space for operation. It is flexible and easy to operate, sensitive to operation, and has higher
The cab design of a mini excavator has multiple functions, mainly including providing a good view, a comfortable operating environment and safety.
The main function of the mini excavator travel motor is to convert hydraulic energy into mechanical energy to drive the excavator forward, backward and turn.
The significant advantages of hydraulic pilot operation of mini excavators include responsive operation, high energy efficiency, load balance and operating comfort.
Imported and joint venture hydraulic components, based on the pilot hydraulic system, are light and flexible in operation, soft in action, and can ensure precise operation.
The ultra‑stable chassis, the enlarged travel reducer has strong driving force, and the attached boom deflection can be used for side digging at an angle, which is suitable for safe operation in small spaces.
The standard auxiliary pipeline can be equipped with various auxiliary devices.
Unique chassis performance, self‑developed all‑terrain walking chassis for garden and off‑road projects, with high passability, super large torque for easy cleaning of debris, and steep slopes without taking off the belt. (Pure engineering chassis can be
Here are the key specifications for this product model. Want more details? Download the brochure or contact us.
| Vehicle weight | 2500kg |
| Machine size | 4300*1300*2200mm |
| Engine | LaiDong LL385B |
| Engine power | 22.1KW |
| Maximum Digging Radius | 4200mm |
| Maximum Digging Depth | 2200mm |
| Maximum Digging Height | 2800mm |
| Maximum dump height | 2300mm |
| Minimum turning radius | 2300mm |
| Chassis width | 1300mm |
